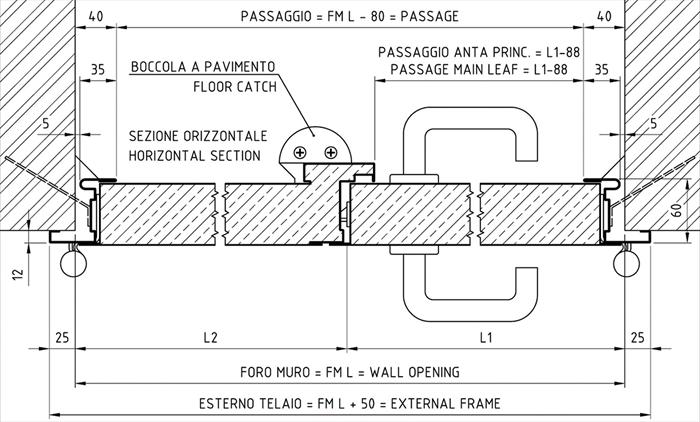

Special dimensions Fire Doors (Double leaf)

PRODUCT CODE : -

Certified fire doors are available in special dimensions as followed:
For Single leaf Fire Doors:
From 1.300mm to 2.592mm (Width)
From 1.770mm to 2.690mm (Height)

General info for Fire Doors

Fire Doors 60 or 120min, Certified According to the New European Standard EN 1634-1, Single or Double Leaf. The Tests for the Certification of the Fire Doors were performed by CSI an International Accredited Body for this Sector.

Technical Details and Specification

  • Total Door Leaf Thickness 60mm, the External Leaf is Manufactured by Double Steel Sheet 0.8mm, while the Internal Content is of a very Dense Layer of Anti-Flammable Material
  • Frame is made from 1.5mm Steel Sheet
  • Lock with Key
  • Black Safety Knob
  • Double Hinges per Leaf, one of which has a spring in order to set the rollback of the Door
  • Reinforced Plates in order to Adjust a Panic Bar (optional)
  • 28mm Sealing Rubber Thermo Expanding for additional sealing of the Space on Fire
  • Metal Label Indicating the Certification of the Door
  • Water Based Eco – Coated, Standard Color RAL 7035 Light Grey

Characteristics & Details

35 Kg/m2 Weight for 60’ Doors and 45 Kg/m2 for 120’ Doors every door comes with installation instructions and certificate the appeared dimensions are fitment dimensions ( from wall to wall).

DOWNLOAD PHOTOS
Photo 1 Photo 2 Photo 3
NOTICE
After special order Fire Doors are also available in other dimensions, colors, accessories etc.
For more information contact export department
